PROJECTS / DEEP SLEEP ESP32

Deep Sleep ESP32

PDF PRINT

STARTED: 04/04/2025
BY: Michael Pope, Danch
TAGS: hobby

Deep Sleep ESP32 Experiments

Date: 4th April, 2025

Monitor results (MICK)

SHELL

$ ssh ava
$ screen
$ cd code/deepsleep/sinatra_server
$ ruby main.rb

Check http://10.1.1.11:4567

Research

Adruino/ESP32

https://www.arrow.com/en/research-and-events/articles/esp32-power-consumption-can-be-reduced-with-sleep-modes

https://docs.arduino.cc/libraries/arduino-low-power/

https://lastminuteengineers.com/esp32-sleep-modes-power-consumption/

https://www.instructables.com/ESP32-Deep-Sleep-Tutorial/

https://docs.espressif.com/projects/esp-idf/en/stable/esp32/api-reference/system/sleep_modes.html

https://randomnerdtutorials.com/esp32-deep-sleep-arduino-ide-wake-up-sources/

PICO

https://www.youtube.com/watch?v=05o5QOZkpwg

Hardware

Make	Model	Store	$
ESP32	WROOM-32	Zaitronics	9
Raspberry	PICO	core	8
Raspberry	PICO2	core	15
Buck (LM2596S)		Zaitronics	4
18650 holder DUAL		Zaitronics	3
18650 x 2		core	12
18650 protected x 2		ledtorch	32
Charger		jaycar	34

https://core-electronics.com.au/sunflower-solar-power-manager-5v.html

https://core-electronics.com.au/monocrystalline-solar-panel-5v-1a.html

(END GAME) : https://core-electronics.com.au/gravity-lightning-sensor.html

Power

ESP32

https://techexplorations.com/guides/esp32/begin/power/

Test

We want to test the battery life for modem, light, deep sleep and hibernation when waking up every 5 minutes to send one POST request to an external sinatra server.

Setup

Web server that logs time

This will be hosted on the LAN on a computer which is running 24/7.

Setup a sinatra app with sqlite3

One Post route

Log experiment number, and time.

Flask

PYTHON

from flask import Flask, request
import os.path
import datetime

app = Flask(__name__)

@app.route('/')
def hello():
   if os.path.isfile("Reading.log"):
       file = open("Reading.log", "r")
       return file
   else:
       return 'No log exists'

@app.route('/query')
def query():

   board = request.args['board']
   test = request.args['test']
   current_time = datetime.datetime.now()

   output = (f"{board}, {test}, {current_time}\n")

   f = open("Reading.log", "a")
   f.write(output)
   f.close()

   return output

Install

SHELL

$ mkdir project
$ cd project
$ python3 -m venv venv
$ source venv/bin/activate

Run the server

(Old method)

SHELL

$ export FLASK_APP=main (name of file running server ie main.py)
$ export FLASK_ENV=development ( old method - use debug instead )
$ flask run –host=0.0.0.0

(new method)

SHELL

$ flask --app main run --debug --host=0.0.0.0

Sinatra

RUBY

require 'sinatra/base'

class Main < Sinatra::Base

 set bind: "0.0.0.0"

 get '/' do
        if File.exist?("readings.log")
         File.readlines("readings.log")
        else
         "No readings, log file doesn't exist."
        end
 end

 get '/log' do
        # Collect params, board=esp32 and test=lightsleep
        #
        # curl "http://127.0.0.1/log?board=esp32&test=lightsleep"
        # curl "http://10.1.1.11:4567/log?board=esp32&test=lightsleep"

        board=params[:board]
        test=params[:test]

        # Define the variable
        output="#{board},#{test},#{Time.now}\n"

        # Write to a file
        File.write("readings.log", output, mode: "a")

        output
 end
end

Main.run!

Install Ruby and dependencies

$ curl https://mise.run | sh

$ sudo apt install libyaml-dev libffi-dev

$ mise install ruby@latest

$ bundle

Run the server

$ ssh <pi/server>

$ screen

$ cd code/deepsleep/sinatra_server

$ ruby main.rb

To disconnect Ctrl+a,d

NOTE: To reconnect to screen, type ‘screen -R’

Test

$ curl "http://10.1.1.11:4567/log?board=esp32&test=lightsleep"

Mick’s server http://10.1.1.11:4567

Pretty up display of data

We want it to look like the following;

Test	Start	End	Duration (m/d/h)
nosleep	dd/mm/yyyy hh:mm	dd/mm/yyyy hh:mm	Mth / days / hours eg: 38hrs
Light sleep			4days, 3hrs
Deep sleep

require 'sinatra/base'
require 'debug'

class Main < Sinatra::Base

set bind: "0.0.0.0"

def create_output
        output=File.readlines("readings.log")

        # Get the first line from file
        start_test = output.first
        current_test = output.first
        previous_test = output.first
        output_a = []

        output.each_with_index do |line,index|
         current_test = line

         # Check for a change in test or end of file
         if current_test.split(",")[1] != previous_test.split(",")[1] or index == (output.count - 1)

         # Record the test into the hash
         output_a << {test: start_test.split(",")[1],
        start: start_test.split(",")[2] ,
        end: previous_test.split(",")[2]}

         # Set the new starting line
         start_test = current_test.clone
         end

         # Keep going
         previous_test = current_test.clone
        end

        output_a
end

get '/' do
        if File.exist?("readings.log")
         @output=create_output
         erb :output
        else
         "No readings, log file doesn't exist."
        end
end

get '/log' do
        # Collect params, board=esp32 and test=lightsleep
        #
        # curl "http://127.0.0.1/log?board=esp32&test=lightsleep"
        # curl "http://10.1.1.11:4567/log?board=esp32&test=lightsleep"

        board=params[:board]
        test=params[:test]

        # Define the variable
        output="#{board},#{test},#{Time.now}\n"

        # Write to a file
        File.write("readings.log", output, mode: "a")

        output
end
end

Main.run!

Also create a views/output.erb with;

<h1>Results</h1>

<table>
<th>Test</th>
<th>Start</th>
<th>End</th>
<th>Duration</th>

<% @output.each do |out| %>
        <tr>
         <td><%= out[:test] %></td>
         <td><%= out[:start] %></td>
         <td><%= out[:end] %></td>
         <td><%= out[:duration] %></td>
        </tr>
<% end %>
</table>

Calculate duration

        # Give us the duration in hours
         duration = (Time.new(end_date) - Time.new(start_date)) / 3600

         if duration <= 24
         duration = "#{duration.to_i}hrs"
         elsif duration > 24
         duration = "#{(duration / 24).to_i}d / #{(duration % 24).to_i }hrs"
         end

         # Record the test into the hash
         output_a << {test: start_test.split(",")[1],
        start: start_date,
        end: end_date,
        duration: duration}

Setup ESP32

Load code for each test which should do the following

Wake every 5 minutes

Connect to WIFI 2.4Ghz

Send a POST request to our webserver

Include text “experiment #1”

Goes to sleep

Connect 18650 to run ESP32 via Sunflower Solar Power

Monitor how long it lasts

From the webserver we could get stats through the SQL looking at the posts we could calculate how long it’s lasted.

Test: Blink example

int LED_BUILTIN=2;

// the setup function runs once when you press reset or power the board
void setup() {

// initialize digital pin LED_BUILTIN as an output.
pinMode(LED_BUILTIN, OUTPUT);
}

// the loop function runs over and over again forever
void loop() {

digitalWrite(LED_BUILTIN, HIGH); // turn the LED on (HIGH is the voltage level)
delay(1000);         // wait for a second
digitalWrite(LED_BUILTIN, LOW);        // turn the LED off by making the voltage LOW
delay(1000);         // wait for a second
}

Uploading

Load ArduinoIDE

Select ttyUSB

Select Board “ESP32 Dev Module”

NOTE: On Micks I had to hold the BOOT button when uploading

Connection code DRAFT #1: Danch using weather station

This same code will be ran on the ESP32, pico W, pico 2 W, STM

Connecting to Battery

https://techexplorations.com/guides/esp32/begin/power/

Two 18650’s 2600mAh -> Buck down to 5V -> VIN + GND on the ESP32 WROOM.

Overcharge/Over Discharge protection

https://www.ledtorchshop.com.au/product/keeppower-18650-protected-rechargeable-2600mah-li-ion-battery-p1826c/?srsltid=AfmBOooFUK6xXEqkotgG4NWKmxd_VVN2khMAjBUmNW68dRO0EKmQYZQ7

Test Amps

	Amps (mAh)	Power
Normal	127	5V direct
Wifi usage	158	5V direct
Deep Sleep	11	5V direct
Light Sleep	13	5V direct
No sleep idle	55
No sleep POST http	115

NOTE: In the no sleep it doesn’t have to do the setup everytime hence the lower POST reading.

Experiment #1: No Sleep

NOTE: Adjust the wake in this first experiment so that it lasts the least amount of time. So we might want to do every one minute, but not less than a minute.

#include <WiFi.h>
#include <HTTPClient.h>
#include <string>

using namespace std;

void wifi_connect() {
WiFi.begin("[SSID]", "[PASSWORD]");

Serial.println("Connecting");
while(WiFi.status() != WL_CONNECTED) {
        delay(500);
         Serial.print(".");
}
         Serial.println("Connected");
}

void setup() {
         Serial.begin(115200);
        while (!Serial);          /* ? */
         Serial.println("Sleep experiment");
         wifi_connect();
}

void loop() {
         //Check WiFi connection status
         if(WiFi.status()== WL_CONNECTED){
          HTTPClient http;

         // Your Domain name with URL path or IP address with path
         http.begin("http://[SERVERIP]:4567/log?board=esp32&test=nosleep");

         // Send HTTP GET request
         int httpResponseCode = http.GET();

         if (httpResponseCode==200) {
Serial.print("Success");
         } else {
Serial.print("Error code: ");
Serial.println(httpResponseCode);
         }

         // Free resources
         http.end();

         /* esp_sleep_enable_timer_wakeup(300 * 1000000); //light sleep for 5 minutes */
         /* esp_light_sleep_start(); */
         }
         else {
          Serial.println("WiFi Disconnected. Attempting to re-connect");
          wifi_connect();
         }

         delay(300000)         /* 5 minutes */
}

Experiment #2: Modem Sleep?

Experiment #3: Light Sleep

#include <HTTPClient.h>
#include <string>
#include "esp_wifi.h"

using namespace std;

#define uS_TO_S_FACTOR 1000000 /* Conversion factor for micro seconds to seconds */
#define TIME_TO_SLEEP 300         /* Time ESP32 will go to sleep (in seconds) */

void wifi_connect() {

WiFi.begin("[SSID]", "[PASSWORD]");

Serial.println("Connecting");
while(WiFi.status() != WL_CONNECTED) {
        delay(500);
        Serial.print(".");
}
Serial.println("Connected");
}

void setup() {
Serial.begin(115200);

while (!Serial);          /* ? */
        Serial.println("Sleep experiment");
        wifi_connect();
}

int counter = 0;

void loop() {
        //Check WiFi connection status
        if(WiFi.status()== WL_CONNECTED){
          HTTPClient http;

         // Your Domain name with URL path or IP address with path
         http.begin("http://10.1.1.11:4567/log?board=esp32&test=lightsleep");

          // Send HTTP GET request
          int httpResponseCode = http.GET();

          if (httpResponseCode==200) {
          Serial.print("Success");
          } else {
          Serial.print("Error code: ");
          Serial.println(httpResponseCode);
          }

          // Free resources
          http.end();

          // Need to stop wifi before sleeping, then start again.
          esp_wifi_stop();
          esp_sleep_enable_timer_wakeup(TIME_TO_SLEEP * uS_TO_S_FACTOR);
          esp_light_sleep_start();
          esp_wifi_start();
        }
        else {
          Serial.println("WiFi Disconnected. Attempting to re-connect");
          wifi_connect();
        }

//delay(300000); /* 5 minutes */
}

We need the esp_wifi_stop/start commands otherwise it’s not working;

https://www.reddit.com/r/esp32/comments/rncows/light_sleep_and_wifi/?rdt=34754

Experiment #4: Deep Sleep

#include <HTTPClient.h>
#include <string>
#include "esp_wifi.h"

using namespace std;

#define uS_TO_S_FACTOR 1000000 /* Conversion factor for micro seconds to seconds */
#define TIME_TO_SLEEP 300         /* Time ESP32 will go to sleep (in seconds) */

void wifi_connect() {

WiFi.begin("[SSID]", "[PASSWORD]");

Serial.println("Connecting");
while(WiFi.status() != WL_CONNECTED) {
        delay(500);
        Serial.print(".");
}
Serial.println("Connected");
}

void setup() {
Serial.begin(115200);

while (!Serial);          /* ? */
        Serial.println("Sleep experiment");
        wifi_connect();
}

int counter = 0;

void loop() {
        //Check WiFi connection status
        if(WiFi.status()== WL_CONNECTED){
         HTTPClient http;

         // Your Domain name with URL path or IP address with path
         http.begin("http://10.1.1.11:4567/log?board=esp32&test=deepsleep");

         // Send HTTP GET request
         int httpResponseCode = http.GET();

         if (httpResponseCode==200) {
         Serial.print("Success");
         } else {
         Serial.print("Error code: ");
         Serial.println(httpResponseCode);
         }

         // Free resources
         http.end();

         // Need to stop wifi before sleeping, then start again.
         esp_wifi_stop();
         esp_sleep_enable_timer_wakeup(TIME_TO_SLEEP * uS_TO_S_FACTOR);
         esp_deep_sleep_start();
         esp_wifi_start();

        }
        else {
         Serial.println("WiFi Disconnected. Attempting to re-connect");
         wifi_connect();
        }

        //delay(300000);         /* 5 minutes */
}

From lightsleep to deepsleep the only line I changed is this;

esp_deep_sleep_start();

Experiment #5: Hibernation

Results

Board	Experiment	Complexity x/5	WIFI Post	Time
esp32	No sleep	0	5min	38hrs
esp32	Modem sleep
esp32	lightsleep
esp32	deepsleep
esp32	hibernation
pico	No sleep
pico	Modem sleep
pico	lightsleep
pico	deepsleep
pico	hibernation
pico2	No sleep
pico2	Modem sleep
pico2	lightsleep
pico2	deepsleep
pico2	hibernation

Later (with Solar)

Gallery

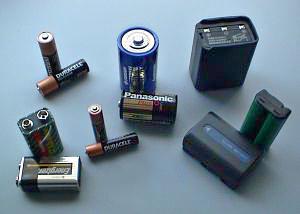

"Batteries" by en:User:Brianiac licensed under PUBLIC DOMAIN.
